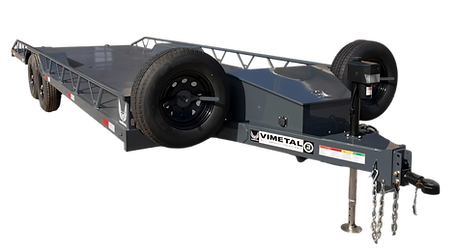

BDOF-10K WITH "ENSENADA" PACKAGE

(RACE TIRE RACK AND MIDDLE DECK TOOL BOX)

BAJA DRIVE OVER FENDER
10K SERIES

BDOF 10K is one of our most popular models, ideal for towing UTVs,

Prerunners, Sand Buggies and all medium race car.

COLORS


STANDARD FEATURES

  • AXLE: Tandem 5200 LB capacity 6 LUG Heavy Duty Axles

  • BRAKES: Electric brakes at front axle and Breakaway

  • TIRES: ST225/75/R15  Load Range (D) 8 Ply

  • WHEELS: Black Mod Steel 15'' x 6'' 6 Bolt

  • SUSPENSION: 5 Leaves Slipper Spring heavy duty

  • COUPLER: 2-5/16'' ball 12.5k with 4 hole bracket

  • JACK: 7000 LB SQ tube Top Wind Jack

  • LIGHTS: LED DOT Stop, Tail, Turn & Clearance

  • TONGUE: Rectangle Tube 2'' X 6''

  • FLOOR/FENDERS: 1/8'' Steel diamond plate

  • FRAME: Square Tube 2'' X 6''

  • TOP RAIL: 1-5/8'' Pipe Size 40

  • G.V.W.R.: 9,990 Lbs

  • SAFETY CHAIN: 5/16" G30 w/Safety Latch Hook (2 each)

  • G.A.W.R.: 5,080 lbs

  • ELEC. PLUG: 7-Way RV

  • HITCH TYPE: Bumper Pull

  • RAMP: 18'' x 5' Loading ramps

  • PAINT: Strength Finish High-Quality Coat

AVAILABLE OPTIONS

  • Under deck mounted fuel tank 50/100 gal

  • 12 V Electric fuel pump

  • Winch base

  • 12 V Electric Winch

  • 12 V Electric Jack

  • Brakes on second axle

  • Extra spare axle

  • Disk Brake Upgrade On Foward Axle

  • Disk Brake Upgrade On Rare Axle

  • E-track (cost per foot)

  • Deep Cycle Marine Battery

  • Spare Axle Complete with Disk Brakes

  • Dove Tail Upgrade

  • LED Work Lights-Flush Mounted (each)

  • Flush Mounted O Rings (each)
